Configure matrix views

A matrix view is a traceability tool. Each row and column is an element from an independent expose / filter selection. Each cell is marked where a recognised relationship exists between the corresponding pair.

This page covers the SysML authoring pieces specific to matrices. See also:

• Foundations - shared concepts: the library, ContentView flags, and expose / filter mechanics

• Use grid views - in-editor workflows, such as adding and removing links

Structure

Every MatrixView redefines a set of built-in sub-views. rowView and columnView define the two axes independently, each using its own expose / filter scope. The two axes can draw from different packages, use different filters, and expose different element types. cellView points to the namespace that contains the relationships between row and column elements.

Each sub-view also inherits the ContentView attributes, which refine what its expose / filter scope collects. One default differs there: cellView overrides includeReferenceElements to true.

A relationship is shown in the matrix only when both its endpoints resolve to elements present on the two axes (see Strong versus weak matching) and the relationship itself is reachable from the cellView expose scope.

A minimal example (see Example matrix for full reference):

package MyViews {
    private import SysideViews::*;

    view myTraceMatrix : MVD::MatrixView {
        view :>> rowView {
            expose MyModel::Requirements::*;
            filter hastype SysML::RequirementUsage;
        }
        view :>> columnView {
            expose MyModel::Components::*;
            filter hastype SysML::PartUsage;
        }
        view :>> cellView {
            expose MyModel::**;
        }
    }
}

Cell view

The cellView expose statement points to one or more namespaces that contain the relationships between row and column elements. The following relationship types are recognised:

• ConnectionUsage

• AllocationUsage

• Derivation relationships (ConnectionUsage tagged with #derivation metadata)

Directional matching

By default a matrix is undirected: a cell is marked whenever the row element and column element appear on either end of a relationship, regardless of order. The cellView accepts a direction attribute to make the matrix directional. Dir is the short alias for MatrixTraceabilityDirection:

Value	Symbol	Meaning
Dir::undirected	✔ (default)	Either end of the relationship may be on the row or column axis.
Dir::row2col	↗	Source must be a row element, target must be a column element.
Dir::col2row	↙	Source must be a column element, target must be a row element.

view myAllocationMatrix : MatrixView {
    view :>> rowView {
        expose MyModel::LogicalFunctions::*;
        filter hastype SysML::ActionUsage;
    }
    view :>> columnView {
        expose MyModel::PhysicalComponents::*;
        filter hastype SysML::PartUsage;
    }
    view :>> cellView {
        expose MyModel::**;
        attribute :>> direction = Dir::row2col; // function -> component
    }
}

Strong versus weak matching

Relationships in SysML are written at the usage level: a connection or allocation names specific usage instances as its endpoints. The matrix axes, however, are often populated with definitions. To connect the two, the matrix expands each endpoint in two ways: strongly, to the definitions that type it, and weakly, to the types that contain it.

Strong match

When an endpoint of a relationship is a usage, the matrix automatically considers the definition that types it as an additional candidate. This is the primary mechanism that makes definition-axis matrices work without requiring every relationship to reference definitions explicitly.

For example, if engine : Engine and powertrain : Powertrain are connected, and the matrix axes contain Engine and Powertrain definitions, that connection produces a strong match for the Engine x Powertrain cell because Engine is the direct type of engine and Powertrain is the direct type of powertrain.

// Matrix with Engine (rows) x Powertrain (columns):
part def Engine;
part def Powertrain;

part def Vehicle {
    part engine : Engine;
    part powertrain : Powertrain;

    // strong match: Engine and Powertrain are direct types
    connect engine to powertrain;
}

Weak match

A weak match occurs when the axis element is not the type of a usage endpoint, but one of the types the endpoint is nested in: the matrix walks each endpoint’s chain of owning types and weakly marks the pairs those containers form. Using the same example: Vehicle types neither endpoint, but both engine and powertrain are its parts, so a Vehicle axis element weakly matches the other end of the connection.

// Matrix with Engine, Powertrain, and Vehicle on the axes:
part def Engine;
part def Powertrain;

part def Vehicle {
    part engine : Engine;
    part powertrain : Powertrain;

    // strong match: Engine x Powertrain (the endpoints' types)
    // weak matches: Vehicle x Powertrain and Engine x Vehicle
    // (Vehicle owns the endpoints, it types neither)
    connect engine to powertrain;
}

By default, weak matches are hidden. The showWeakTraceability attribute on cellView controls this (see Matrix attributes). When both a strong and a weak match exist for the same cell, the strong match takes precedence.

Editable matrix views

Editable matrix views allow adding and removing relationships directly from the matrix UI. Rather than writing a custom filter, pick a concrete preset from the SysideViews library. Each preset specialises in one relationship type:

Preset	Relationship type	Created pattern
MVD::ConnectionMatrixView	ConnectionUsage	connection connect a to b
MVD::AllocationMatrixView	AllocationUsage	allocate a to b
MVD::RequirementMatrixView	Requirement derivation	#RequirementDerivation::DerivationMetadata connection { end #RequirementDerivation::OriginalRequirementMetadata ::> a; end #RequirementDerivation::DerivedRequirementMetadata ::> b; }

All three presets inherit from EditableMatrixView, which automatically restricts rowView and columnView to Definition elements (filter istype SysML::Definition) and sets exposeFeaturesAndHeritage = true on the cellView; neither needs to be written explicitly. The axes do not get the traversal, so an axis that should collect definitions through usages sets exposeFeaturesAndHeritage itself, as the example does.

An editable matrix must admit exactly one relationship kind; the presets guarantee this by construction. A matrix whose cellView filter admits several kinds, or none of the supported ones, opens as read-only with a warning explaining what to change.

Supported modelling pattern

Editable matrix views operate on the Definition-Usage pattern, applied as follows:

• Axes - rowView and columnView are populated by Definition elements, enforced automatically by EditableMatrixView.

• Cell container - a single Type owns the Usage features that represent relationships between those definitions. This is the Type exposed by cellView.

The cellView expose must point to that single container Type. When a relationship is created from a cell (right-click, Add Traceability), the extension walks the features of the exposed Type looking for Usages whose type matches a Definition on each axis. New relationships are anchored there.

A minimal connection matrix example:

part def Sender;
part def InputPort;
part def Receiver {
    part inputPort : InputPort;
}

part def System {               // single Type that needs to be exposed by cellView
    part sender : Sender;
    part receiver : Receiver;
    connection connect sender to receiver.inputPort;
}

Disabled cells

Because new relationships are anchored to the Usages of the cell container, a Definition on an axis must be represented by exactly one such usage. Otherwise the Add Traceability context-menu entry is disabled for the row or column element, with a warning explaining why:

• No usage typed by that Definition exists in the cell namespace

• More than one usage typed by that Definition exists; the target is ambiguous

For example, given:

package ExampleColumnNamespace {
    part def ColumnA;
    part def ColumnB;        // no usage in TraceabilityContext → creation disabled
}
package ExampleRowNamespace {
    part def RowA;
    part def RowB {
        part subpart_a : RowA;  // RowA reachable through RowB's subpart
    }
}
package ExampleTraceabilityNamespace {
    private import ExampleColumnNamespace::*;
    private import ExampleRowNamespace::*;
    item def TraceabilityContext {
        part column_a : ColumnA;  // typed by ColumnA ✔
        part row_b : RowB;        // typed by RowB ✔; RowA reachable via row_b.subpart_a
    }
}

The matrix marks ColumnB with a warning because no usage typed by it exists in TraceabilityContext, so Add Traceability is disabled for that column.

Matrix attributes

Set on rowView, columnView, or cellView as noted.

Attribute	Set on	Default	Description
representation	rowView, columnView	Rep::name	Label shown in matrix headers. Values: Rep::name, Rep::shortName, Rep::qualifiedName. See Header representation.
verticalColumnNames	columnView	false	Rotates column header text 90 degrees to save horizontal space. Toggleable in the UI. See Header representation.
direction	cellView	Dir::undirected	Constrains which end of a relationship may sit on which axis. See Directional matching.
showWeakTraceability	cellView	false	Includes weak matches alongside strong matches. See Strong versus weak matching.
portsAreTransparent	cellView	false	Treats connections to a port as direct connections to the port’s owner. Applies to connections, derivations included; it has no effect on AllocationUsage or on relationship creation in editable matrices. See Port transparency.

Header representation

The representation attribute controls the label text shown in matrix headers. Rep is the short alias for MatrixElementRepresentation:

view :>> rowView {
    expose MyModel::Requirements::*;
    filter hastype SysML::RequirementUsage;
    attribute :>> representation = Rep::shortName; // show <'REQ-001'> etc.
}

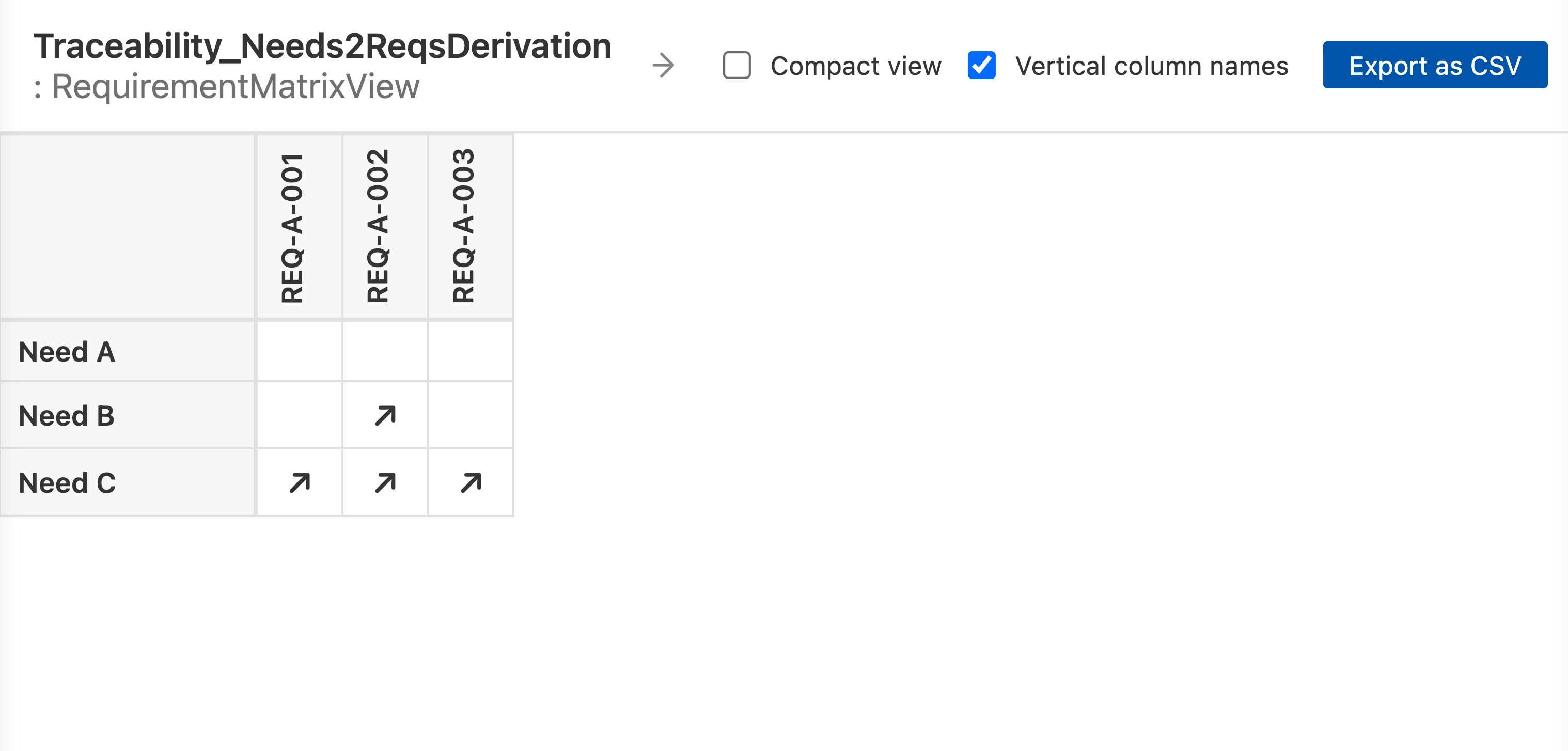

The verticalColumnNames attribute rotates column headers 90 degrees to save horizontal space when there are many columns:

view :>> columnView {
    expose MyModel::Components::*;
    filter hastype SysML::PartUsage;
    attribute :>> verticalColumnNames = true;
}

Port transparency

When portsAreTransparent is set to true, connections to a port are treated as direct connections to the port’s owner. This is useful when connections are wired through ports and the matrix should show the logical owner-to-owner relationship rather than owner-to-port:

port def DataPort;

part def Sender {
    port output : DataPort;
}
part def Receiver {
    port input : DataPort;
}
part def System {
    part s : Sender;
    part r : Receiver;
    connect s.output to r.input;
}

Without portsAreTransparent, the matrix would not strongly mark the Sender x Receiver cell, because the connection endpoints are ports, not the parts themselves (with weak matching on, the pair would still surface as a weak mark through the ports’ owners). With it set, the port lookup is transparent and the cell gets a strong mark:

view :>> cellView {
    expose MyModel::System::*;
    attribute :>> portsAreTransparent = true;
}

Example matrix

A reference template combining an editable preset, a ContentView flag, and matrix attributes:

package MyViews {
    private import SysideViews::*;

    item def ContextForViews {
        view allocationMatrix : MVD::AllocationMatrixView {
            doc
            /* Rows are requirements, columns are system design elements, cells show allocation links. */

            view :>> rowView {
                expose SystemRequirements::'Requirement Group A'::*;
                attribute :>> exposeFeaturesAndHeritage = true;
                attribute :>> representation = Rep::shortName;
            }
            view :>> columnView {
                expose SystemStructure::SimpleSystem::*;
                attribute :>> exposeFeaturesAndHeritage = true;
                attribute :>> representation = Rep::name;
                attribute :>> verticalColumnNames = false;
            }
            view :>> cellView {
                expose SystemRequirements::'Requirement Group A';
                attribute :>> direction = Dir::undirected;
            }
        }
    }
}

Reference files

The example imports the SysideViews library, which is not included in the download. Open the example in the Views Explorer, or export it with syside table export.

Download Allocation Matrix (ZIP)
