Diagram views UI

A diagram opens in a panel beside the model it came from. What it draws can be a single element, a whole file, or a view, depending on the entry point you used: see Visualize your model for the three of them. This page covers what the panel offers once a diagram is on screen, which is the same whichever of the three it came from. For writing views, see Select diagram elements and Configure diagram views.

Controls

Drag with the left mouse button to pan the diagram, and scroll to zoom. The toolbar in the corner of the panel holds the rest:

The visualization panel toolbar.

  • re-renders the diagram from the saved file

  • writes the diagram as an image, see saving a diagram

  • copies a command that reproduces the diagram with the viz command of the Syside CLI

  • and zoom by a step, and fits the whole diagram in the panel

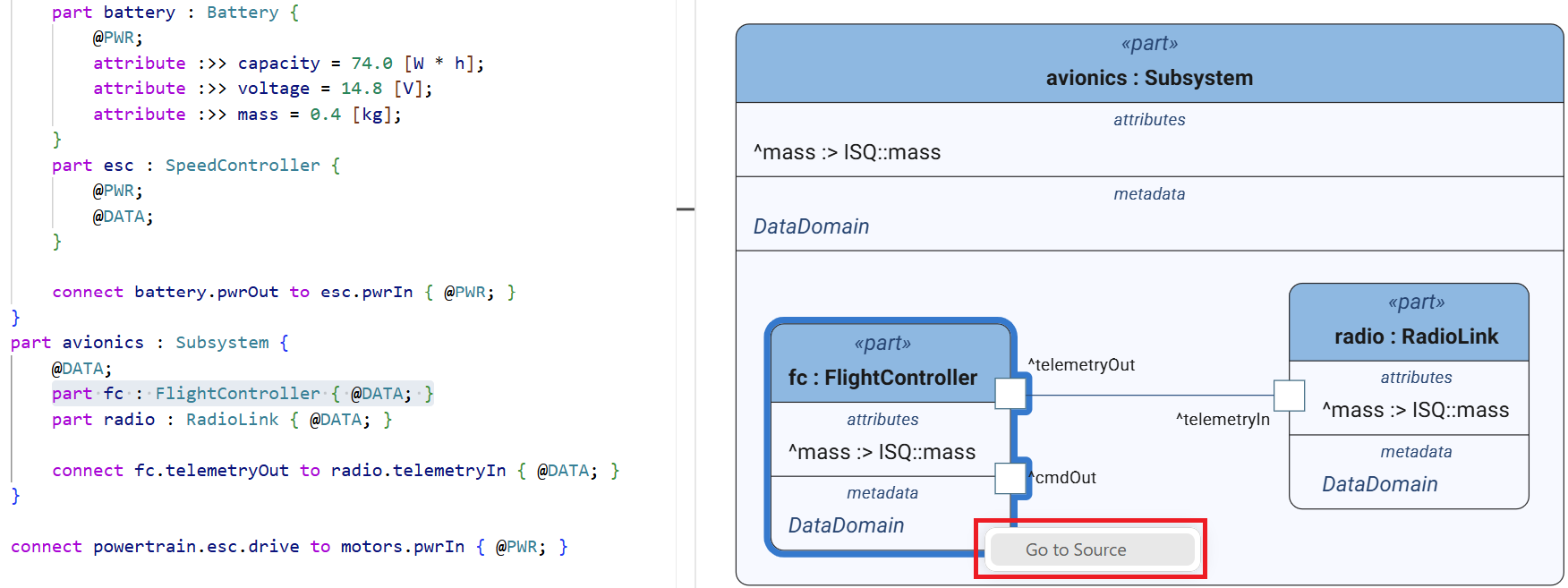

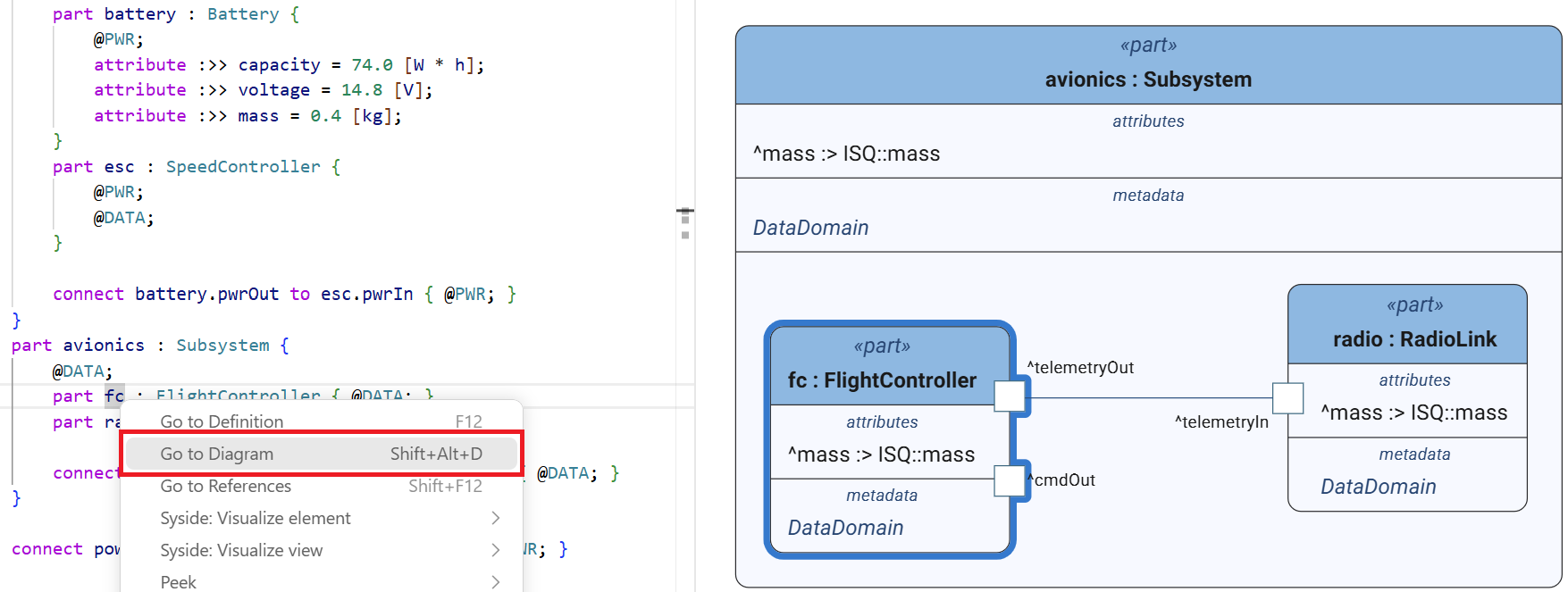

Click an element to select it, and Shift+click to add it to or remove it from the selection. Clicking empty space or re-rendering clears the selection. The panel does not move, hide or drill into elements: the element, file or view you visualized decides what it draws. Select diagram elements covers how a view states what to include, and SysML v2 diagram coverage lists the SysML v2 notation Syside supports.

Diagram type and layout

The Diagram picker chooses the kind of diagram: General, Interconnection, Action flow, State transition or Sequence. The Layout picker arranges children as a tree or nested inside their parents. Changing either re-renders the element, and both choices are kept when the diagram is refreshed or saved.

The Diagram and Layout pickers.

Both pickers apply to single-element visualizations only. They are grayed out for a view, which states its own diagram type and layout in the model, and for a whole file, where neither applies.

Depth

The Depth control sets how many levels of nested elements the diagram draws. − and + step it by one level, or type a number and press Enter. ∞ draws every level, which is slow on large models. Each change re-renders the diagram.

A single element or a whole file starts at the depth the syside.visualization.defaultDepth setting gives, 3 unless you change it. A view starts at the depth it defines in the model, and ↺ returns to that depth after you change it. The control changes one diagram only: the setting and the model stay as they are.

Saving a diagram

asks for a name and location first, then renders: the format follows the extension you choose, one of .svg, .png or .jpg. Once the file is written, the notification names the full path and offers Open.

A saved diagram uses the light theme, while the panel follows your VS Code color theme. A [viz.style].theme set in syside.toml overrides both. The rest of the [viz] settings apply to these diagrams too, see Diagram settings.
