CrossSubsetting

CrossSubsetting is defined in SysML specification on page 0. Excerpt from the machine readable specification:

CrossSubsetting is a kind of Subsetting for end Features, as identified by crossingFeature, to subset a chained Feature, identified by crossedFeature. It navigates to instances of the end Feature’s type from instances of other end Feature types on the same owningType (at least two end Features are required for any of them to have a CrossSubsetting).

The crossedFeature of a CrossSubsetting must have a feature chain of exactly two Features. The second Feature in the chain is the crossFeature of the crossingFeature (end Feature), which has the same type as the crossingFeature. When the owningType of the crossingFeature has exactly two end Features, the first Feature in the chain of the crossedFeature is the other end Feature. The crossFeature’s featuringType in this case is the other end Feature. When the owningType has more than two end Features, the first Feature in the chain is a Feature that CrossMultiplies all the other end Features, which is also the featuringType of the crossFeature.

A crossFeature must be owned by its featureCrossing (end Feature) when the featureCrossing owningType has more than two end Features. Otherwise, for exactly two end Features, the crossFeatures of each the ends can instead optionally be inherited by the other end from one of its types or a subsetted Feature.

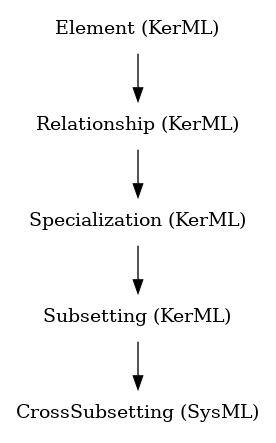

The following diagram shows the inheritance hierarchy of CrossSubsetting according to the specification:

// Class: CrossSubsetting
digraph {
CrossSubsetting [label="CrossSubsetting (SysML)" shape=plaintext]
Subsetting -> CrossSubsetting
Subsetting [label="Subsetting (KerML)" shape=plaintext]
Specialization -> Subsetting
Specialization [label="Specialization (KerML)" shape=plaintext]
Relationship -> Specialization
Relationship [label="Relationship (KerML)" shape=plaintext]
Element -> Relationship
Element [label="Element (KerML)" shape=plaintext]
}

The following table shows all attributes defined for CrossSubsetting according to the specification together with the documentation from the machine readable specification. Note that in SysIDE API, we use snake case for attribute names instead of Pascal case used in the specification.

Attribute	Documentation from machine readable specification
Attributes defined in `CrossSubsetting`:
`crossed_feature`	The chained `Feature` that is cross subset by the `crossingFeature` of this `CrossSubsetting`.
`crossing_feature`	The end `Feature` that owns this `CrossSubsetting` relationship and is also its subsettingFeature.
Attributes defined in `Subsetting`:
`owning_feature`	A `subsettingFeature` that is also the `owningRelatedElement` of this `Subsetting`.
`subsetted_feature`	The `Feature` that is subsetted by the `subsettingFeature` of this `Subsetting`.
`subsetting_feature`	The `Feature` that is a subset of the `subsettedFeature` of this `Subsetting`.
Attributes defined in `Specialization`:
`general`	A `Type` with a superset of all instances of the `specific` `Type`, which might be the same set.
`owning_type`	The `Type` that is the `specific` `Type` of this `Specialization` and owns it as its `owningRelatedElement`.
`specific`	A `Type` with a subset of all instances of the `general` `Type`, which might be the same set.
Attributes defined in `Relationship`:
`is_implied`	Whether this Relationship was generated by tooling to meet semantic rules, rather than being directly created by a modeler.
`owned_related_elements`	The relatedElements of this Relationship that are owned by the Relationship.
`owning_related_element`	The relatedElement of this Relationship that owns the Relationship, if any.
`related_elements`	The Elements that are related by this Relationship, derived as the union of the `source` and `target` Elements of the Relationship.
`sources`	The `relatedElements from which this Relationship is considered to be directed.`
`targets`	The `relatedElements` to which this Relationship is considered to be directed.
Attributes defined in `Element`:
`declared_name`	The declared name of this `Element`.
`declared_short_name`	An optional alternative name for the `Element` that is intended to be shorter or in some way more succinct than its primary `name`. It may act as a modeler-specified identifier for the `Element`, though it is then the responsibility of the modeler to maintain the uniqueness of this identifier within a model or relative to some other context.
`documentation`	The Documentation owned by this Element.
`element_id`	The globally unique identifier for this Element. This is intended to be set by tooling, and it must not change during the lifetime of the Element.
`is_implied_included`	Whether all necessary implied Relationships have been included in the `ownedRelationships` of this Element. This property may be true, even if there are not actually any `ownedRelationships` with `isImplied = true`, meaning that no such Relationships are actually implied for this Element. However, if it is false, then `ownedRelationships` may not contain any implied Relationships. That is, either all required implied Relationships must be included, or none of them.
`is_library_element`	Whether this Element is contained in the ownership tree of a library model.
`name`	The name to be used for this `Element` during name resolution within its `owningNamespace`. This is derived using the `effectiveName()` operation. By default, it is the same as the `declaredName`, but this is overridden for certain kinds of `Elements` to compute a `name` even when the `declaredName` is null.
`owned_annotations`	The `ownedRelationships` of this `Element` that are `Annotations`, for which this `Element` is the `annotatedElement`.
`owned_elements`	The Elements owned by this Element, derived as the ownedRelatedElements of the ownedRelationships of this Element.
`owned_relationships`	The Relationships for which this Element is the owningRelatedElement.
`owner`	The owner of this Element, derived as the `owningRelatedElement` of the `owningRelationship` of this Element, if any.
`owning_membership`	The `owningRelationship` of this `Element`, if that `Relationship` is a `Membership`.
`owning_namespace`	The `Namespace` that owns this `Element`, which is the `membershipOwningNamespace` of the `owningMembership` of this `Element`, if any.
`owning_relationship`	The Relationship for which this Element is an ownedRelatedElement, if any.
`qualified_name`	The full ownership-qualified name of this `Element`, represented in a form that is valid according to the KerML textual concrete syntax for qualified names (including use of unrestricted name notation and escaped characters, as necessary). The `qualifiedName` is null if this `Element` has no `owningNamespace` or if there is not a complete ownership chain of named `Namespaces` from a root `Namespace` to this `Element`.
`short_name`	The short name to be used for this `Element` during name resolution within its `owningNamespace`. This is derived using the `effectiveShortName()` operation. By default, it is the same as the `declaredShortName`, but this is overridden for certain kinds of `Elements` to compute a `shortName` even when the `declaredName` is null.
`textual_representations`	The `TextualRepresentations` that annotate this `Element`.
